A Race Timing Solution combines participant identification, timing hardware, timing software and race operations to capture race times at the start, finish and designated checkpoints. Events.studio supports marathons, triathlons, cycling road races, charity runs, and obstacle courses using RFID timing, race tags, timing mats, antennas, race clocks, software and related event technology.
A professional Race Timing System needs to work as part of the race operation, not as an isolated timing device. The setup needs to connect participant identification, timing points, timing software and the supporting infrastructure required for the specific course and event format.

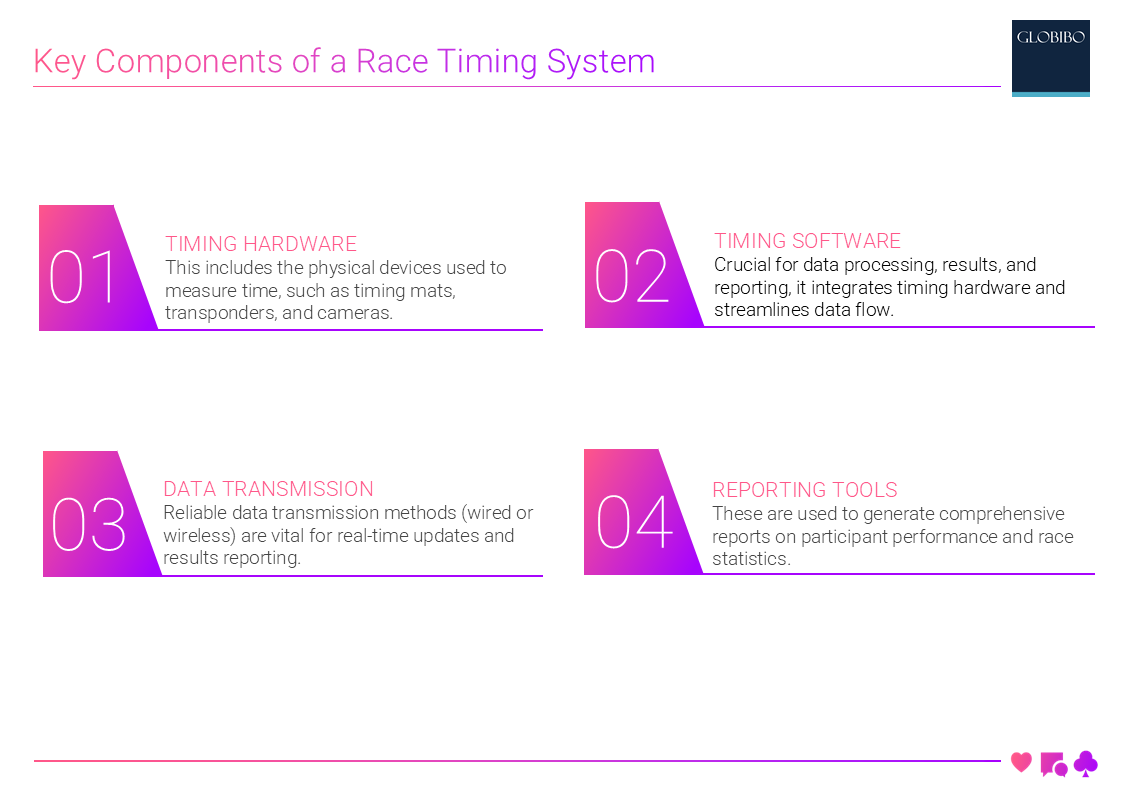

The main components of a Race Timing System operate at different layers of the race workflow. RFID timing identifies participants, antennas and mats define where timing is captured, race clocks display timing information, software processes the records, race bibs and chips identify participants, and race management connects timing with the wider event operation.

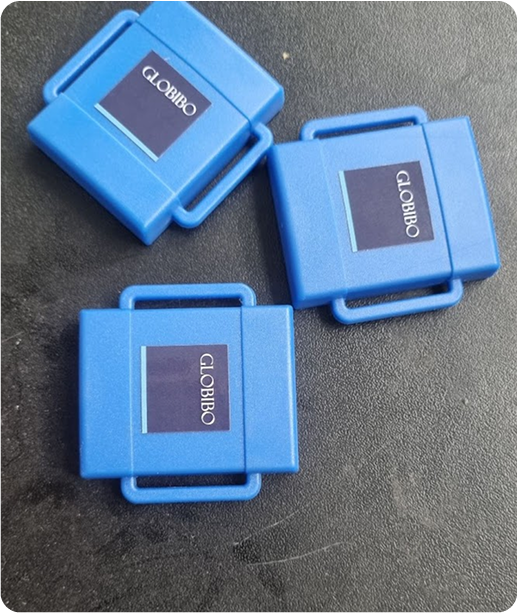

RFID timing systems use radio frequency identification to associate participant tags with timestamps captured at designated points on the course. The Race Timing System can use passive or active transponders according to the race format, with the captured timing data feeding the central timing workflow.
Discover how active and passive transponders can be configured for different race formats. [Read comparison guide]

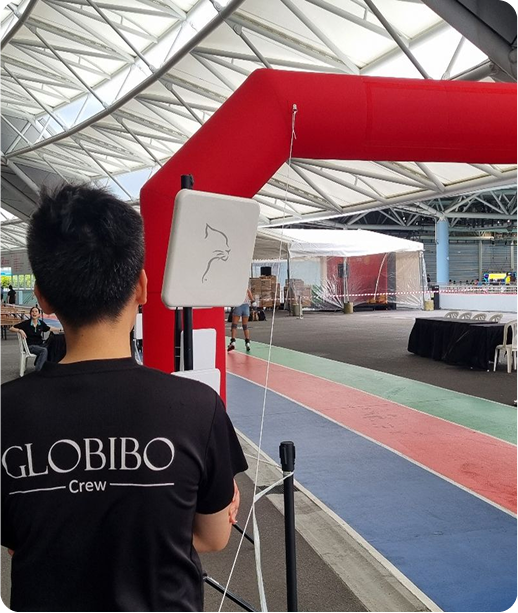

Timing-point design determines where participant passages are captured. Events.studio’s Race Timing System can use ground timing mats, side-mounted antennas and overhead gantry arrays to match the course layout, timing-point requirements and participant flow.
Configure timing-point placement around the physical race course. [Read technical article]

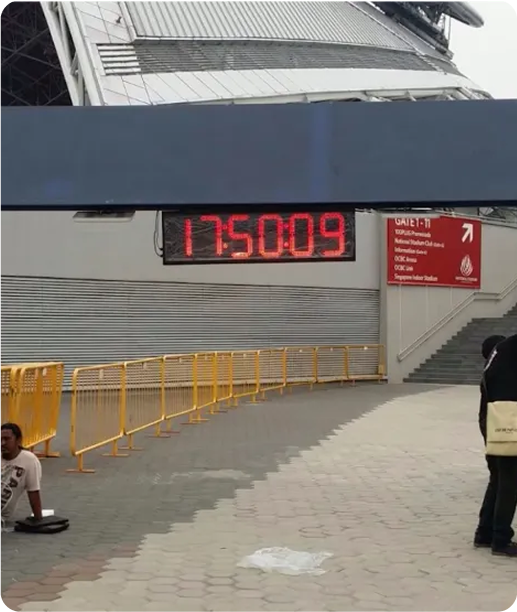

Large-format LED race clocks and timers provide visible timing information at start and finish locations. The display layer complements the electronic timing system by giving athletes, officials and spectators a visible reference during the event.
Add visible timing displays to the start and finish environment. [Inquire for rental]

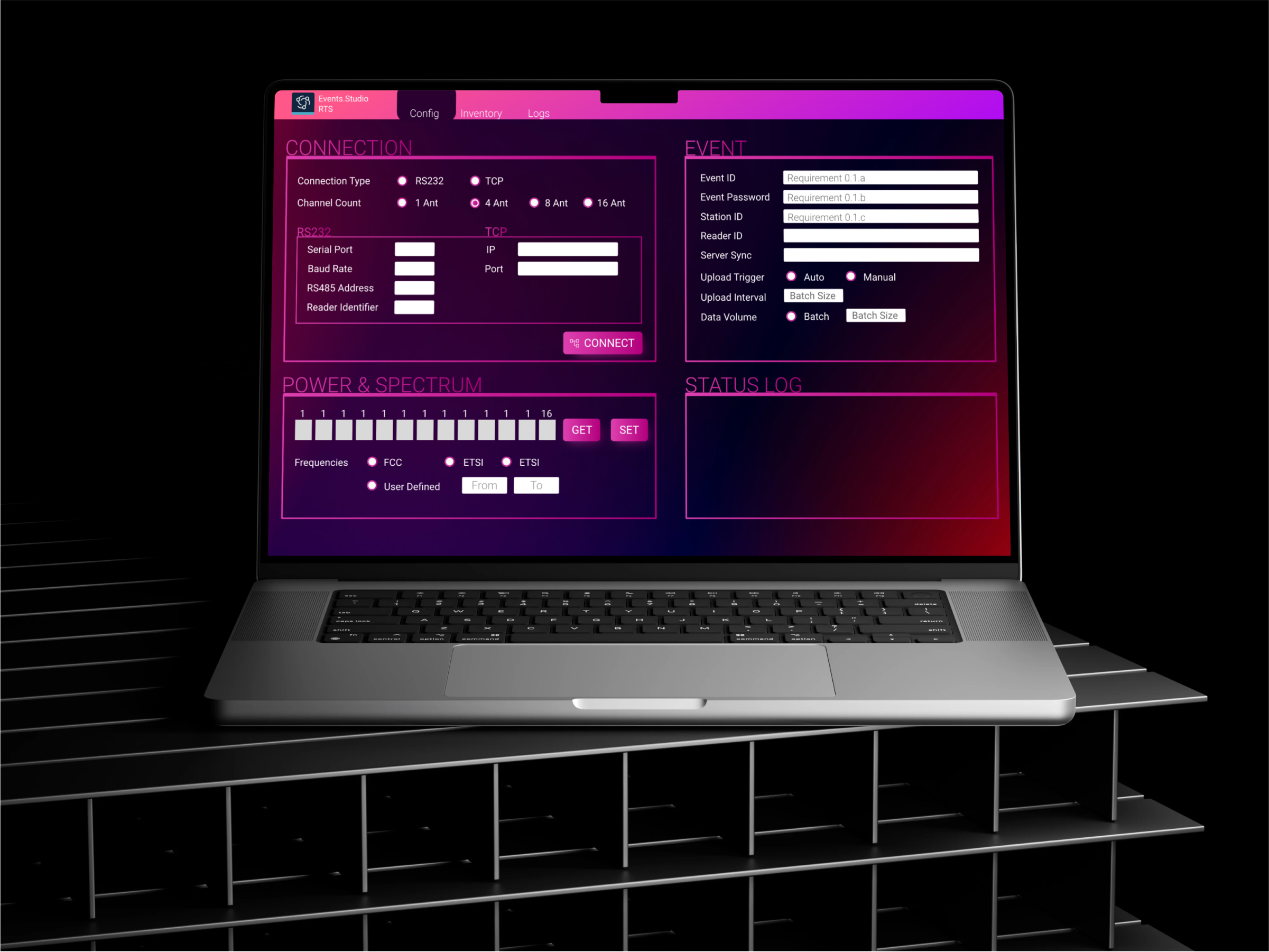

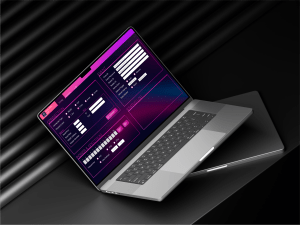

Timing software provides the processing layer between timing-point data and race results. On-course readers and split points feed timestamps into the central timing workflow, where the software can process gun time, chip time, category placements and split information.
Review timing software capabilities that support live race operations. [Read features guide]

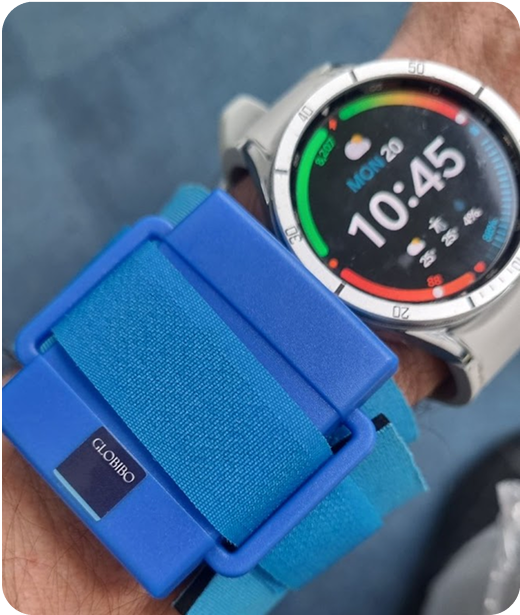

Participant identification connects each person to their timing records. Race bibs, transponder chips and sport-specific tags can be configured according to the event format and environmental requirements.
Configure participant identification around the race format and timing method. [Read wearables article]

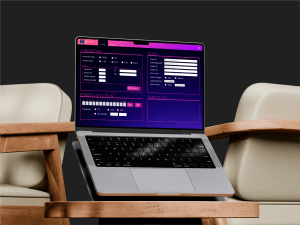

Race timing becomes more useful when participant data and operational workflows are connected to the timing environment. The existing Race Management Solution covers activities before, during and after the race.
Connect race signups, bib distribution, timing checkpoints and result publishing within the wider event workflow. [Learn more]

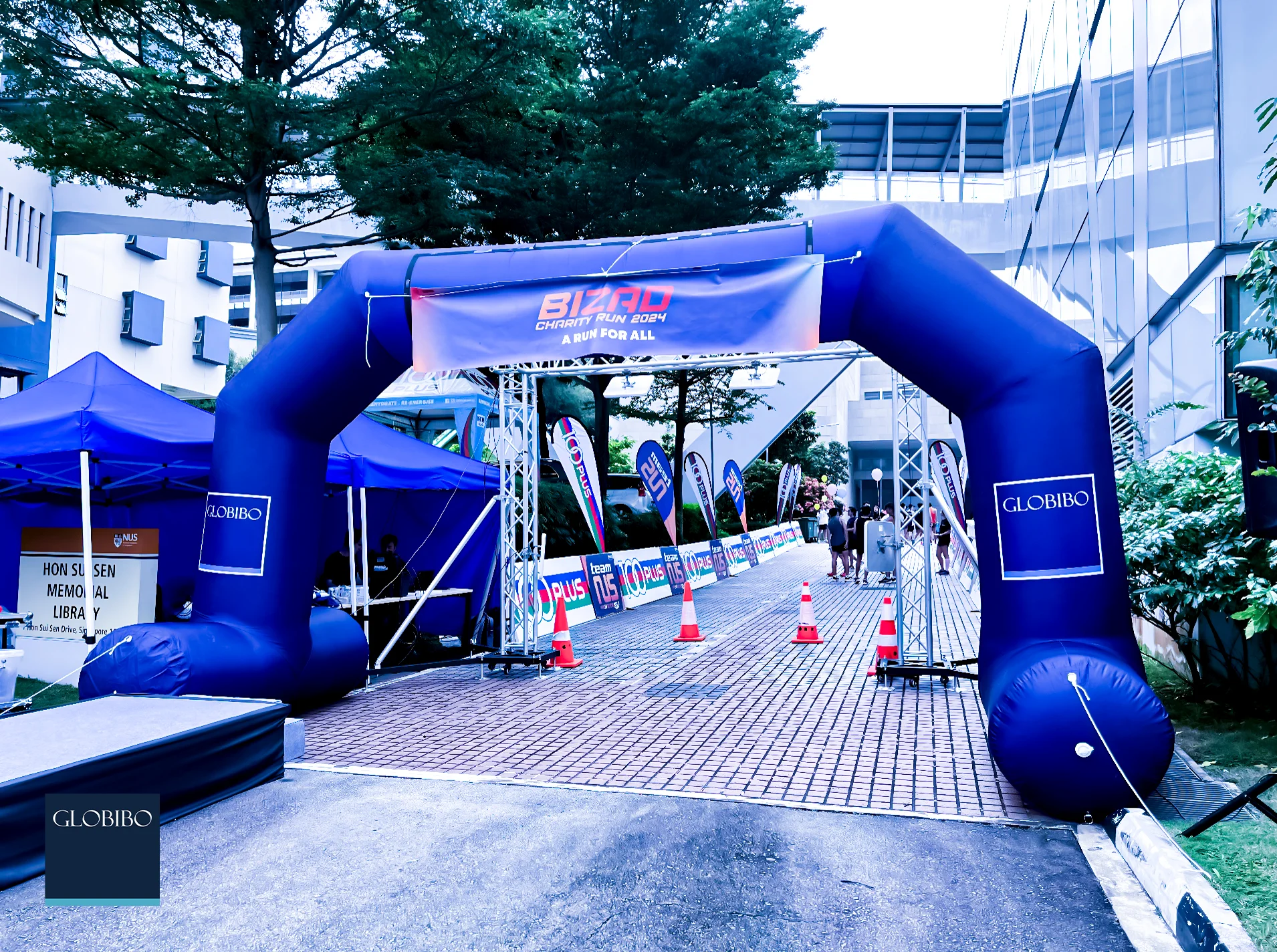

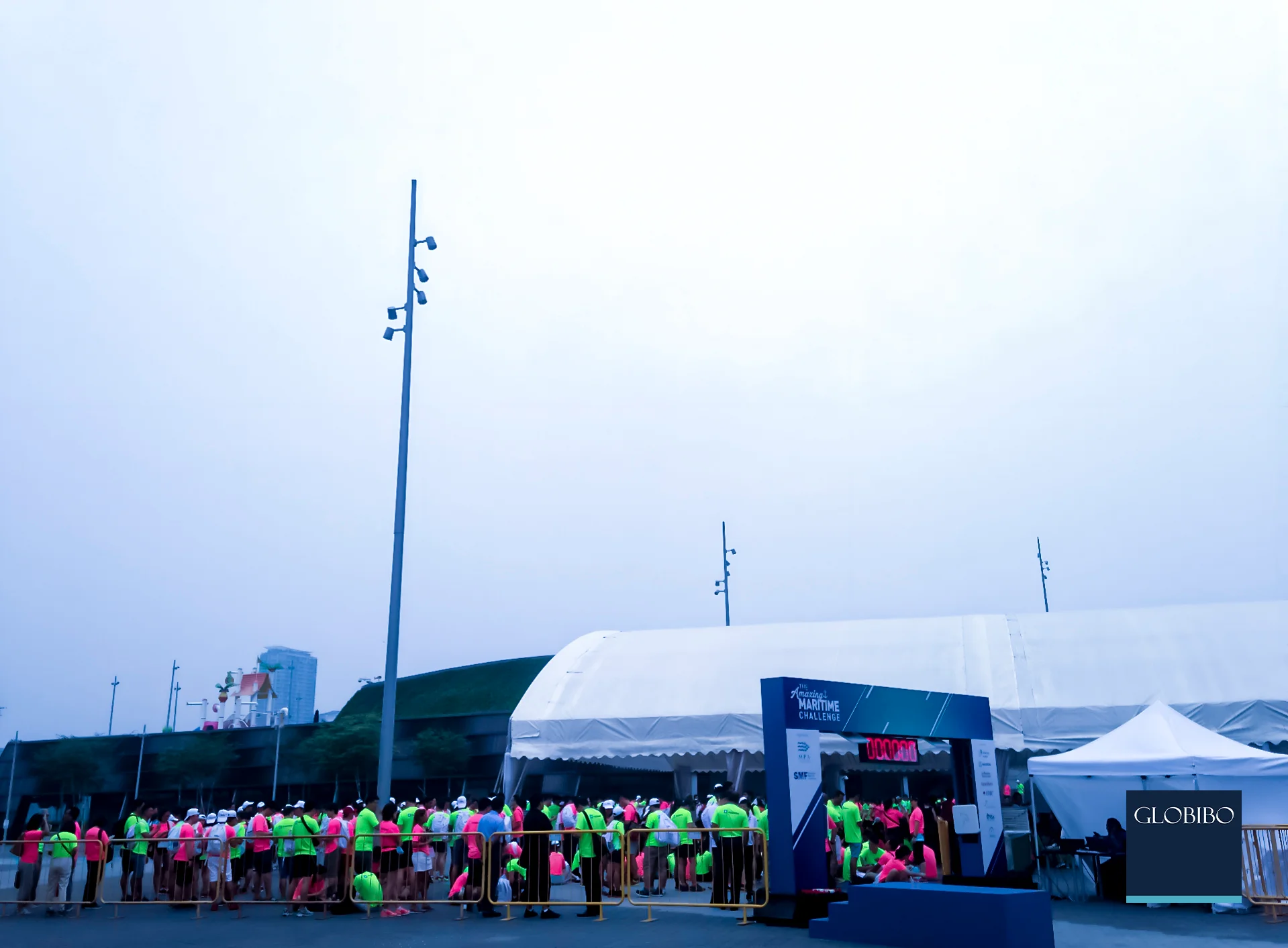

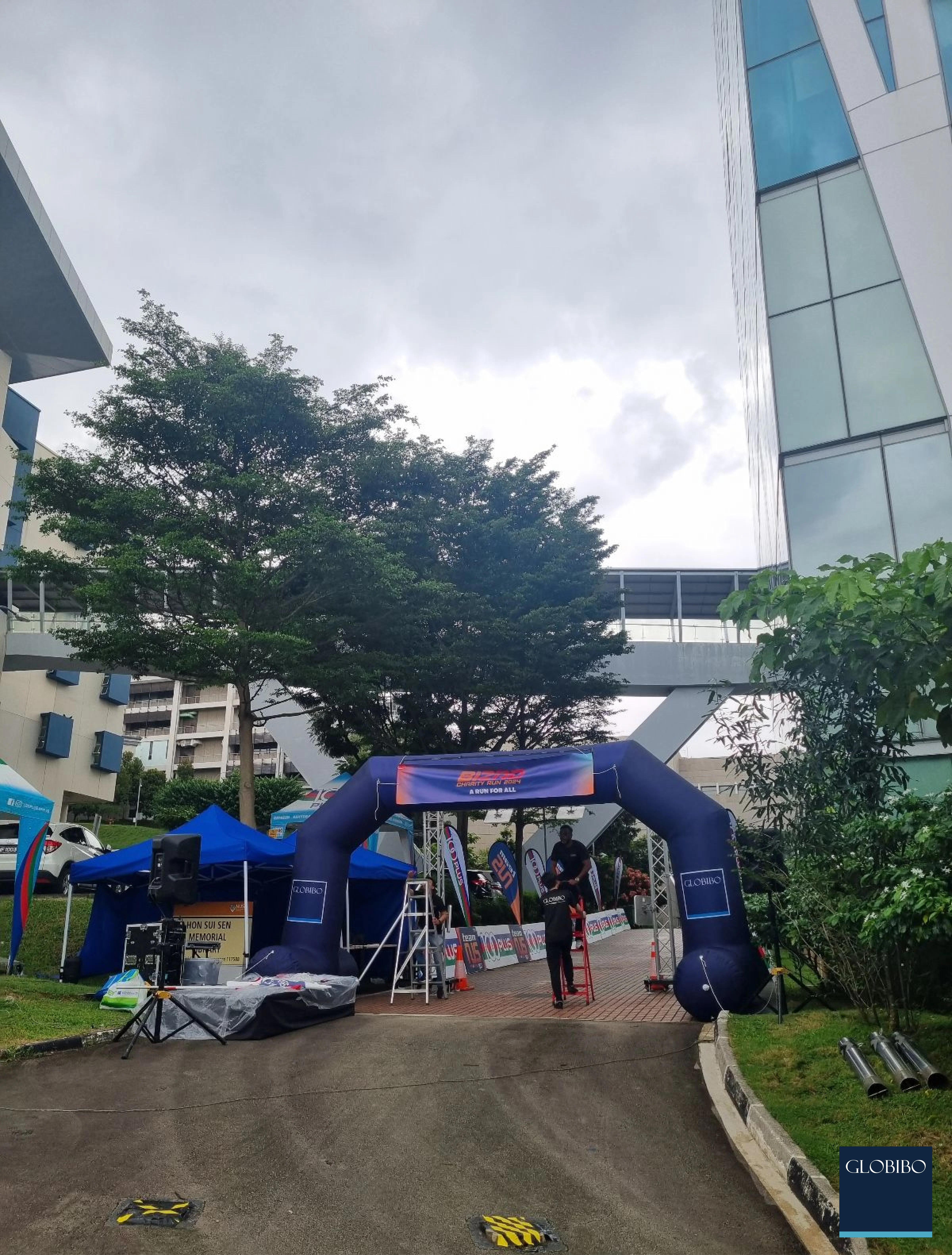

The following projects demonstrate different Race Timing System requirements, from a charity run to race-time integration with gamification and video technology.
Globibo develops generative & engaging Event Technology Solutions to excite Attendees & create Opportunities for Growths.

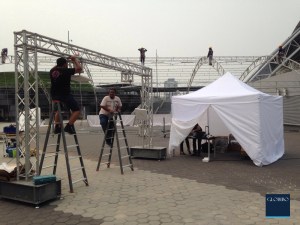

Race timing projects can involve more than timing equipment. Globibo’s documented work includes timing hardware and software together with race infrastructure, mobile applications, gamification and video technology, allowing the technical setup to be considered as part of the wider race operation.
Globibo’s approach combines creative production, scalable platforms, and reliable on-site technology across physical, hybrid, and virtual formats — only organization with ISO 20121 (Event Sustainability), ISO 27001 (Information Security), and ISO 9001 (Quality Management).
| Specification | Details |
|---|---|
| Timing precision | Sub-millisecond accuracy (±0.001s) with dual-redundancy backup readers |
| RFID technology | UHF passive transponders (Gen2 / ISO 18000-6C) and active battery transponders for high-speed cycling |
| Tag forms supported | Tyvek bib-integrated chips, waterproof neoprene ankle straps, shoe tags, and bike frame decals |
| Read density & speed | Up to 1,000 tags per second across 8-meter wide timing mats |
| Split points & checkpoints | Start line, intermediate 5K/10K/Half splits, transition zones, and finish line gates |
| Live results & display | Instant live web results, SMS notifications, LED race clocks, and video-slicing finish line replays |
| Core system integrations | Online race registration and event mobile application |
For event organizers, the practical difference between electronic Race Timing Systems, manual stopwatch timing and basic gun-time systems is the way participant identification, timing capture, result processing and split information are handled.
| Feature | Events.studio RFID System | Manual stopwatch timing | Basic gun-time systems |
|---|---|---|---|
| Timing precision & accuracy | Sub-millisecond (±0.001s) | ±0.5s (human reaction error) | ±0.1s |
| Net chip time vs. gun time calculation | Yes (calculates both automatically) | No (gun time only) | Manual calculation |
| Concurrent tag read capacity | 1,000+ tags per second | 1 runner at a time | Limited concurrency |
| Intermediate split mats (5K, 10K, Half) | Yes (wireless remote sync) | Requires manual staff on course | Rarely deployed |
| Instant live web results & SMS finish alerts | Yes (instant cloud push) | Hours / days after event | Delayed batch upload |
| Video-slicing finish line replay clips | Yes (synchronized with chip) | No | No |
| Scale: mass-participation events | 500 to 50,000+ athletes | Under 200 participants | Up to 2,000 participants |
Whether you are organizing a 500-participant charity fun run or a 30,000-runner international marathon, our team can configure a race timing package around your course, participant identification requirements and event operations.
An RFID Race Timing System uses radio frequency identification to record participant passages at designated timing points. The participant’s tag is detected by the timing infrastructure and the resulting timestamp is associated with the participant record.
Gun time measures elapsed time from the race start signal to the finish. Chip time or net time measures the participant’s recorded time between the configured start and finish timing points.
Both options are available depending on event needs. Disposable bib chips can be used for running events, while reusable transponders can be configured for formats such as triathlons, open-water swims and cycling events.
The appropriate timing mats, antenna components and participant tags should be selected according to the event environment. Waterproof participant identification can also be used where the race involves water exposure.
Intermediate timing mats or antennas are positioned at designated checkpoints such as 5K, 10K, half-marathon or turnaround points. The timing system records participant passages at those locations and passes the data to the timing software.
The speed of result publishing depends on the configured software, connectivity and event workflow. The existing Race Timing System setup supports live web results and participant notifications from processed timing data.

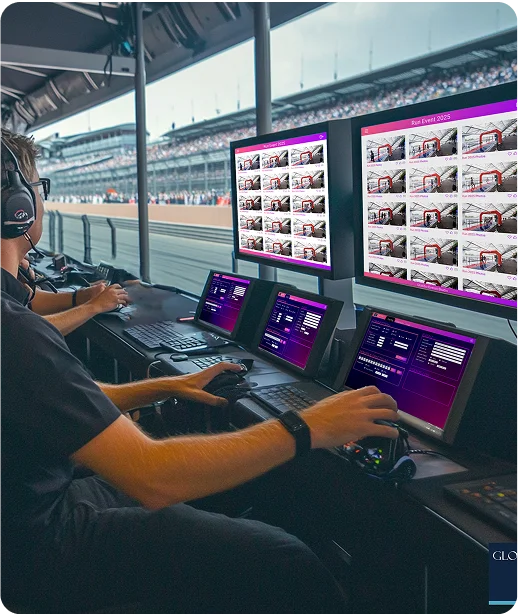

Video-slicing synchronization connects finish-line video with race timing data so that a participant’s finish can be associated with the corresponding timing record and video sequence.
Yes. The Race Timing System can be connected with the supplied event registration workflow so participant records and timing identification can be coordinated as part of the wider event operation.
